Salutations,
Here's my 2012 series of semi-DiY experiments based on ultrasonic hudimifiers, actually built around a "Mist Maker" module. Overall it confirmed the potential benefit of cannabic vapour conditioning that includes just a tiny ajustable amount of moisturized air, solving the anoyance of coughs as a bonus. Its effectiveness felt so convincing i decided to switch to VaporGenie's pipe being well aware of clean-burning butane self-generating steam besides carbonic gas.
Independant Duplication always been a key feature in all my challenges so i chose to rely on easy/convenient hacking of pre-existing commercially available devices, in the present case some relatively affordable appliance producing cold fog through ultrasonic water cavitation. Lucky me i found one product where the round top opening diameter matched that of a soft drink bottle at 105 mm (dia.) while also equiped with a handle inside which could double as a mounting hook:

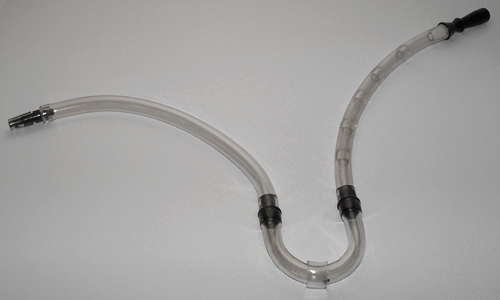

That particular purchase didn't only prove justified, while it was in stock nearby i also managed to get food-safe (aquarium) PVC tubing to start building a mixer cavity as shown below:

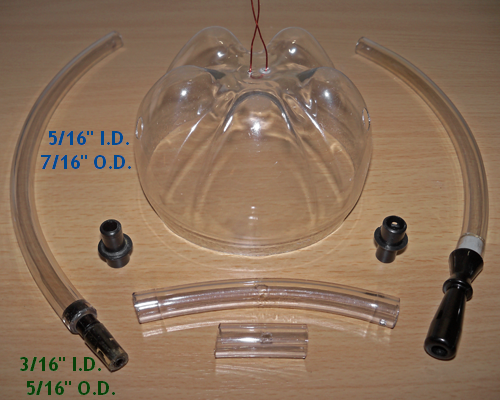

The black refurbished joint plugs came from a few previous nebulizer experiments, the rest are vaporizer accessories:

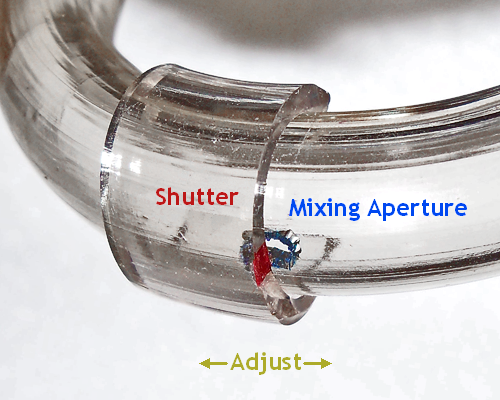

Notice how sections of smaller PVC tubing caused repeated turbulence before the fumet was inhaled, though the critical part is that sliding section located at the bottom of a "U" shaped tube punctured with a tiny hole, so to form an ajustable mixer injection site:
That's certainly the most clever part considering that fog condensation happened to cause formation of a droplet inside my cannabic path and it got large enough to seal the injection hole between inhalations by virtue of surface tension + gravity, yet also allowing an aproximately-dosed amount of moisturized air to enhance each puff.
Such conditioning effect cured my frequent coughs, it was devine!

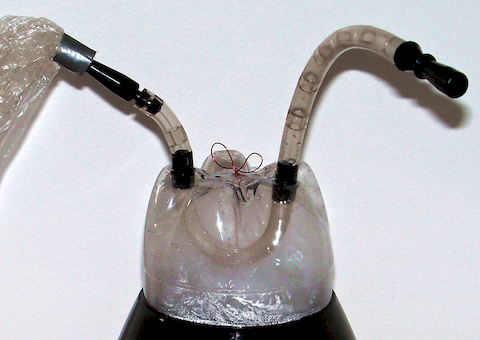

This is a view of my « FogBong! » contraption held in place by a convenient combination of mounting handle and simple copper wire:

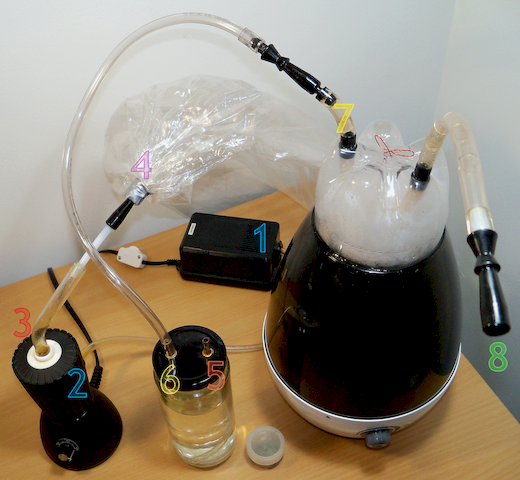

Notice how those choices supported direct/indirect and bag strategies:
#1/#2 accomodated an optional 2-speeds air pump. #3/#4 was used to fill a bag, or #3/#5 for direct inhalation via an anti-return water valve (rudimentary bubbler)... #6/#7 or #4/#7 determined if my bag would be involved or not. Finally, #8 delivered the ajustable mix so i could evaluate how much is too much.

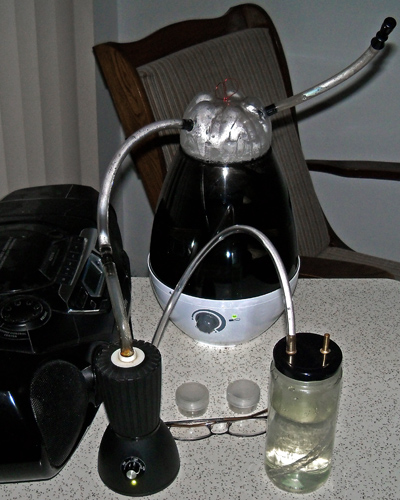

Years later my customized VaporGenie pipe would fit inside a 11 cm (Large) x 9 cm (Wide) x 4 cm (Deep) leather pouch with all of its necessary accessories, this didn't but it sure was a treat in my venerable veranda flooded by sunlight and/or moonlight in Shawinigan:

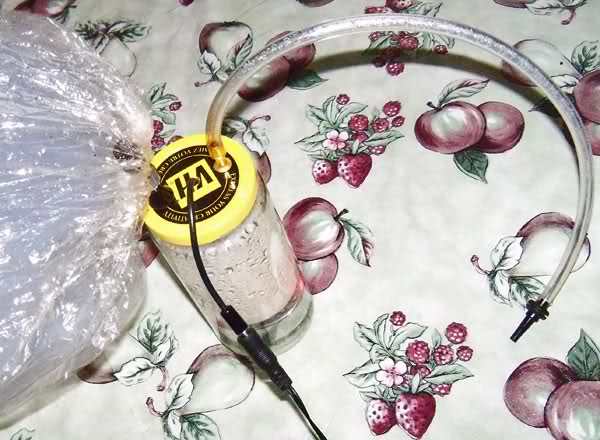

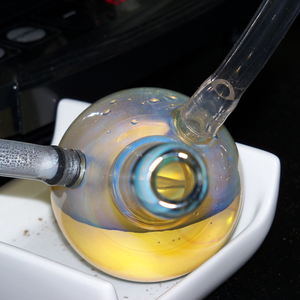

As a side-note, the anti-return vase plugged into that vaporizer's air inlet prevented/delayed the moist cannabic path to send moisture back into its oven, which would have cooled it down dramatically... No need for this much precaution when using only a disposable bag combined to some Mist Maker module in a bottle:

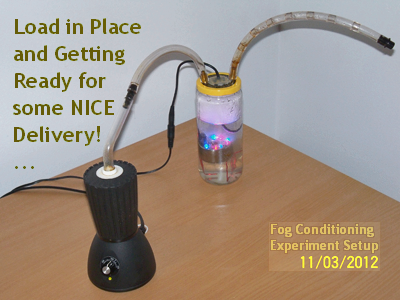

Ah, and the bubbling sounds + Mist Maker light-show really added to the experience at night:
In pure honesty those were days i dearly cherished!

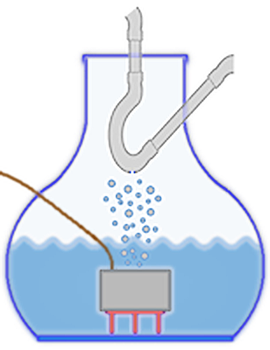

Anyway, this is what's been involved, concatenated in my conceptual schematic symbol below:
The basics are still there to serve as a reminder if one ever wants to try.
Good day, have fun!!
